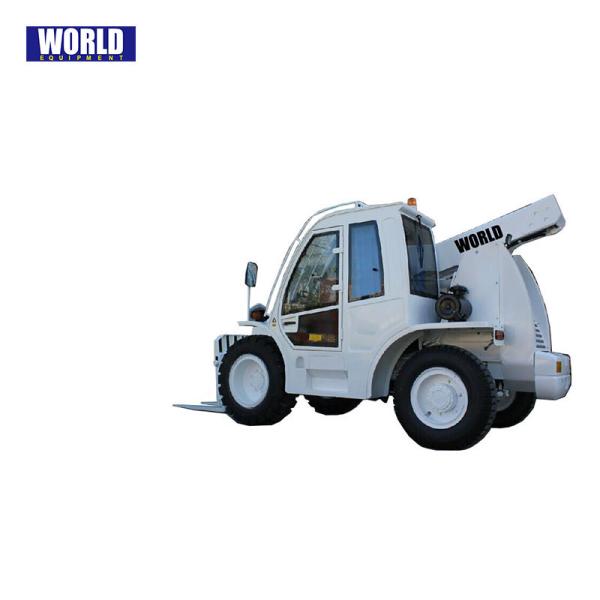

    Diesel Engine Telescopic Handlers 3t 4WD

    Ask Lasest Price
    Brand Name : WORLD
    Model Number : WEA30-4
    Certification : Provided
    Price : 15000-90000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 set/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Diesel Engine Telescopic Handlers 3t 4WD

    Product Overview


    WEA30-4 Telescopic Forklift

    • ​Driving Axle heavy duty 4 wheel drive,with inside wet brake,bigger braking torque, shorter braking distance;Both front & rear axle with steering system. Hydrostation tranmission.
    • Application with quick change system the telescopic forklift is application to the unstuffing and casing of pellatized goods in container, as well as handling,stacking and short-distance transportation of a varity of packaged goods. The forlkift suitable for many different working environment, is ideal equipment for loading and unloading, lifting and transportation in mining, factory, architecture,building material, dock,municipal engineering industries and more.

    Diesel Engine Telescopic Handlers 3t 4WDDiesel Engine Telescopic Handlers 3t 4WDDiesel Engine Telescopic Handlers 3t 4WD

    Diesel Engine Telescopic Handlers 3t 4WD

    Product Specification


    Item
    Specification
    WEA25-4
    WEA30-4
    1
    Rated load
    2500 kg
    3000kg
    2
    Operating weight
    8200 kg
    8600kg
    3
    Max. Lifting height
    7000 mm
    7000mm
    4
    Load capacity @ max. Forward reach
    1000 kg
    1250 kg
    5
    Max Out-Reach distance
    3350mm
    3350mm
    6
    Max. Loading Capacity(Max Out-Reach)
    1300 kg
    1400 kg
    7
    Load center
    500 mm
    500 mm
    8
    Max.driving force
    ≥50 kN
    ≥50 kN
    9
    Braking distance
    ≤12.5 m
    ≤12.5 m
    10
    Min. Ground clearance
    400mm
    400mm
    11
    Wheel Base
    2700 mm
    2700 mm
    12
    Tread
    1870 mm
    1870 mm
    13
    Min. Turning radius outer tire center
    ≤6200 mm
    ≤6200 mm
    14
    The second Boom reach time
    ≤12.05/10s
    ≤12.05/10s
    The second Boom get back time
    ≤6.02/5.5s
    ≤6.02/5.5s
    Lifting time
    ≤25.2/22.5s
    ≤25.2/22.5s
    Descending time
    ≤15.2/14 s
    ≤15.2/14 s
    15
    Telescopic Boom Changing angle range
    -11°~60°
    -11°~60°
    16
    Travelling speed (unloaded)
    30km/h
    30km/h
    17
    Engine Model
    4DK100-T304
    4DK100-T304
    18
    Engine Rated power
    74 KW
    74 KW
    19
    Engine Rated Speed
    2200r/min
    2200r/min
    20
    Tire
    Front 16/70-24 Rear 10.00/20-16
    Front16/70-24 Rear10.00/20-16
    21
    Overall dimension (without fork)
    5730*2390*2485 mm
    5730*2390*2485 mm

    Package And Delivery
