    Good Rigidity Telescopic Handler Forklift Integral Frame Telescopic Boom Forklift

    Ask Lasest Price
    Brand Name : World Equipment
    Model Number : WEA7017-4
    Price : 10000-50000
    Payment Terms : L/C, T/T
    Supply Ability : 10 units per45days
    Delivery Time : 5-8Work days
    • Product Details
    • Company Profile

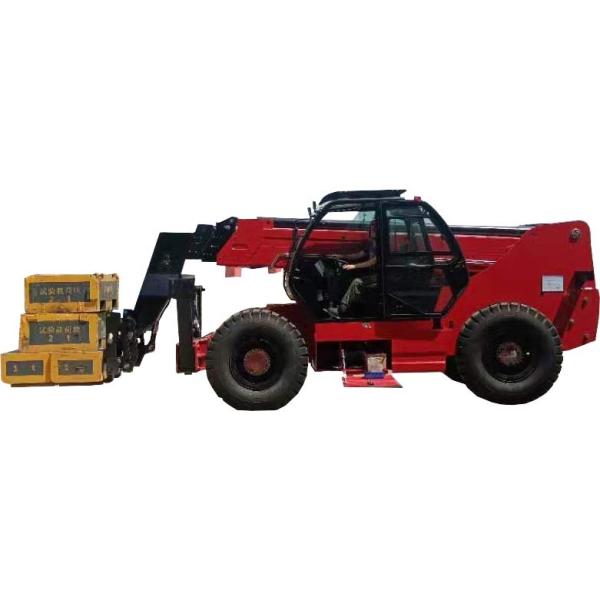

    Good Rigidity Telescopic Handler Forklift Integral Frame Telescopic Boom Forklift

    Telescopic Forklift Telehandler Telehandler 7ton Telescopic Boom Handler Forklift Lo With CE Good Price WEA7017-4

    1. This telescopic forklift WEA7017-4 which features the highest operation simplicity, safety and efficiency.

    2. With full hydraulic coaxial flow amplification steer-ing system,turning radius for rear steering axle is small, steering light and flexible

    3.Using front wheel drive,rigid suspention,rear axle steering structure, can achieve four-wheel drive.Front axle spiral bevel gear and wheel side planetary wheel to reduce the speed and increase torque,have excellent load capacity

    4. Using the integral frame,can provide good rigidity and strength, to ensure high reliability of this type of chassis.are optional. Standard with quick hitch, can choose fork positional and side-shifter.

    5. The use of adjustable direction machine, air seat, joystick control valve control distribution valve and work device oil,light and flexible operation,sitting more com-fortable.

    6. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.


    Items

    Unit

    Deviation allowed

    WEA7017-4

    Rated loadkg-7000
    Load centermm-600

    Load capacity @ max. Forward reach

    kg-1200

    Max. Lifting height

    m1.50%16.9(打开支腿)
    16.8(未打开支腿)
    Max front reach with forkm1.50%11.7

    Min. Ground clearance

    mm1.50%450

    Min. Turning radius outer tire center

    mm1.50%7500

    Angle

    Boom frame upward angle

    °±170

    Boom frame downward angle

    °±1-2

    Operating weight

    kg5%17000

    Length (with fork)

    mm2%6710

    Width

    mm2%2500

    Height

    mm2%2900
    Wheel basemm2%3420
    front Wheel treadmm2%2100
    rear Wheel treadmm2%2100
    fork (L*W*T)mm-1220*150*65

    DF Cummins

    - QSB4.5-C160-30
    Rated powerkw/rpm-119/2200
    Transmission type-

    Hydraulic static transmission

    Max. Travelling speed (unloaded)km/h10%25
    Gradeability%-25%
    Front 2 pcs--14.00-24-28PR
    Rear 2pcs--14.00-24-28PR
    mm10%3790
