    9 Meter Telescopic Handler Forklift Boom Strong Power 5ton CE Certificate

    Ask Lasest Price
    Brand Name : World Equipment
    Model Number : WEA50-4
    Price : 10000-50000
    Payment Terms : L/C, T/T
    Supply Ability : 10 units per45days
    Delivery Time : 5-8Work days
    • Product Details
    • Company Profile

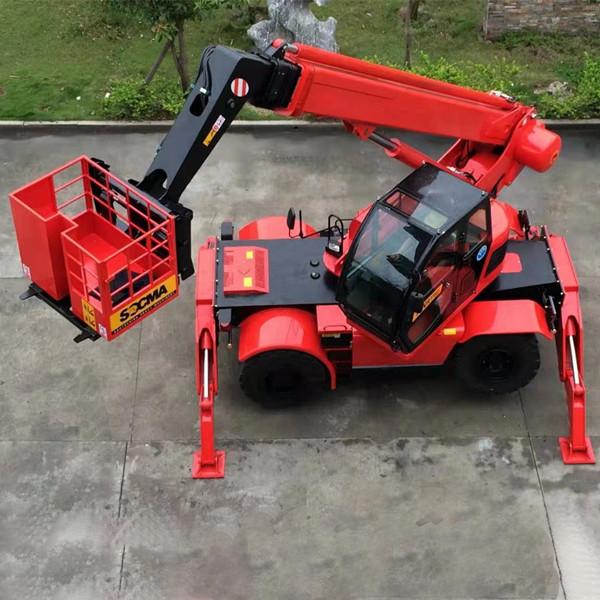

    9 Meter Telescopic Handler Forklift Boom Strong Power 5ton CE Certificate

    Telescopic Forklift Telehandler Telehandler 5ton 9 Meter Telescopic Boom Handler Forklift Lo With CE Good Price WEA50-4


    1. This telescopic forklift WEA50-4 which features the highest operation simplicity, safety and efficiency.

    2. Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations

    3. Double turbo hydraulic torque converter,stepless speed change. Single-lever control transmission system,with 2 speeds for forward and reverse gears, easier to operate.

    4. Use dual-pump combined hydraulic system, greatly reduce the fuel consumption and energy consumption

    5. With full hydraulic coaxial flow amplification steer-ing system,turning radius for rear steering axle is small, steering light and flexible.

    6. This model standard with forks,bucket,extension forks and aerial work platform are optional. Standard with quick hitch, can choose fork positional and side-shifter.

    7. The use of adjustable direction machine, air seat, joystick control valve control distribution valve and work device oil,light and flexible operation,sitting more com-fortable.

    8. Using maintenance-free battery,cab match with fan,radio,air conditioning,more comfortable and reliable.


    Items
    Unit

    Deviation
    allowed
    WEA25-4WEA30-4WEA35-4WEA40-4WEA50-2WEA50H
    基本参数BasicparameterRated loadkg-250030003500400050005000
    Load centermm-500500500500500500
    Load capacity@max.Forward reachkg-100012501550180015002000
    Basic boom max.Lifting heightmm±1.5%485048504850485045005300
    Max.Lifting heightmm±1.5%700070007000700073008800
    Max.Horizontal reachmm±1.5%335033503350335057005470
    Min.Horizontal reachmm±1.5%93093093093015001270
    Min.Ground clearancemm±1.5%400400400400310310
    Min.Turning radius(外轮中心 outer tyre
    center)
    mm≤105%620062006200620068006800
    AngleBoom frame upward angle.±1.0606060604360
    Boom frame downward angle.±1.0-11-11-11-11-14-12
    Operating weightkg±5%82008600900094401300013000
    OveralldimensionLength(with fork)mm±2%573057305730573062885900
    Widthmm±2%239023902390239023002350
    Heightmm±2%248524852485248527152655
    Wheel treadmm±1%18701870187018701638/18451638/1845
    Wheel basemm±1%270027002700270029882988
    Rated power/Rated turning speedKWirimin-60/200060/200060/200060/200074/220074/2200
    DrivingsystemMax.Travelling speed (unloaded)km/h±10%303030302525
    Grade ability%-≥30%≥30%230%≥30%220%≥20%
    TyreFront wheel(2pcs)--16/70-2416/70-2416/70-2416/70-2411.00-2011.00-20
    Rear wheel (2 pcs)--10.00
    -20-16
    10.00
    -20-16
    10.00
    -20-16
    10.00
    -20-16
    9.00-209.00-20
    EngineDongfeng Cummins 国二
    National 2
    4BTA3.9-C80II4BTA3.9-C80II4BTA3.9-C80II4BTA3.9-C80II4BTA3.9-C100II4BTA3.9-C100II
     国三
    National 3
    QSB3.9-C80QSB3.9-C80QSB3.9-C80QSB3.9-C80QSB3.9-C100QSB3.9-C100
